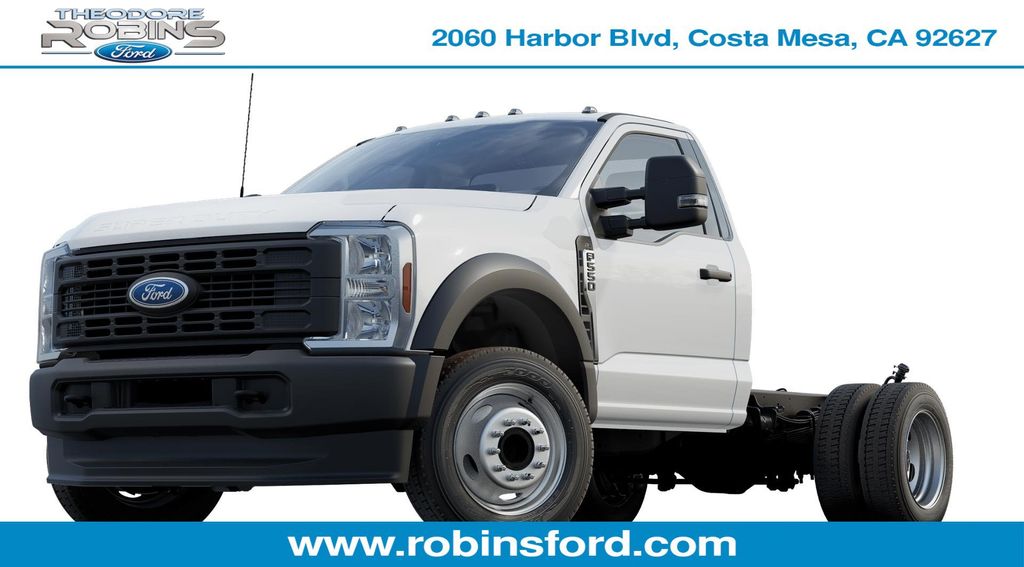

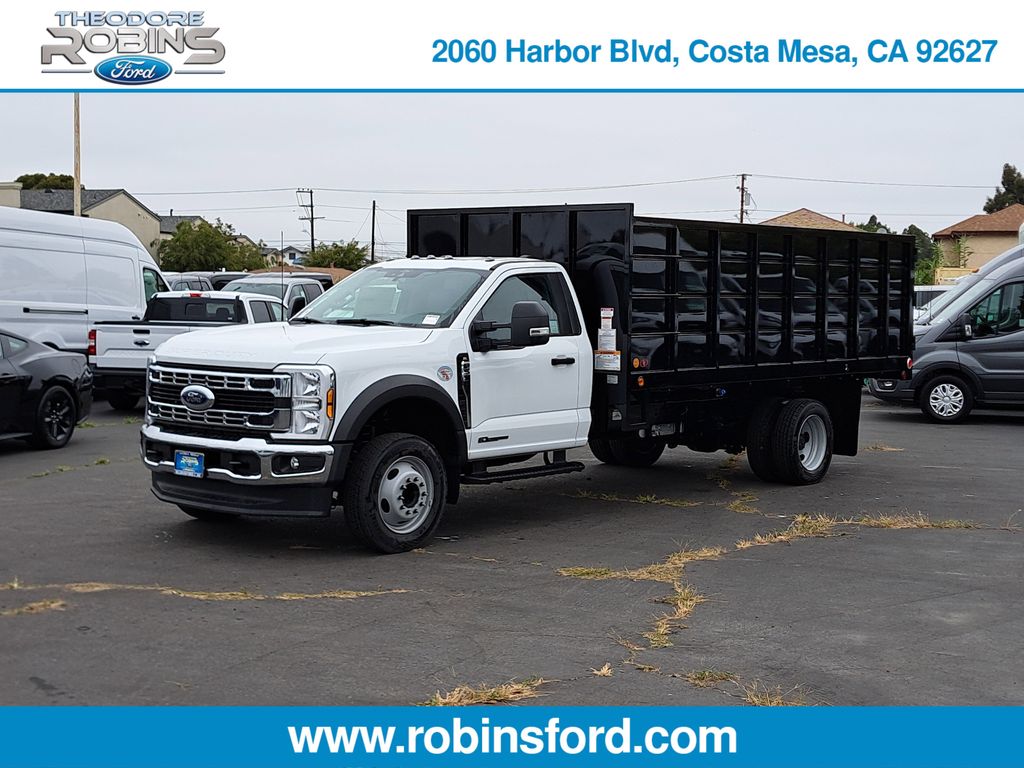

New 2025 Ford F-550SD XL

VIN: 1FDUF5GT0SEC07079
Stock #: 0SC07079

Vehicle Details

Trans.:10-Speed Automatic
Engine:8 Cylinders
Drivetrain:Rear Wheel Drive
Fuel Type:Diesel
Ext. Color:Oxford White
Int. Color:Medium Dark Slate
MSRP
$72,965
Accessories
+$27,200
Sale Price
$100,165

Add Your Heading Text Here

Description

For over 100 years, our family-owned dealership has been committed to providing exceptional service and quality vehicles.

2025 Ford F-550SD XL Oxford White RWD Power Stroke 6.7L V8 DI 32V OHV Turbodiesel 10-Speed Automatic Price includes dealer added accessories.
  • ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20
  • OXFORD WHITE

Standard Features

  • Order Code 660A
  • 4.88 Axle Ratio
  • Limited Slip w/4.30 Axle Ratio
  • GVWR: 18,000 lbs Payload Package
  • GVWR: 19,500 lb Payload Plus Upgrade Package 1
  • Wheels: 19.5″ x 6″ Argent Painted Steel
  • HD Vinyl 40/20/40 Split Bench Seat
  • AM/FM Stereo w/MP3 Player
  • XL Chrome Package
  • High Capacity Trailer Tow Package
  • Dual 68 AH/65 AGM Battery
  • Platform Running Boards
  • Front License Plate Bracket
  • Rear View Camera & Prep Kit
  • Trailer Brake Controller
  • Exterior Backup Alarm (Pre-Installed)
  • 190 Amp Alternator
  • SYNCĀ® 4 Communication & Entertainment System
  • 4 Speakers
  • 4-Wheel Disc Brakes
  • Air Conditioning
  • Tachometer
  • ABS brakes
  • AM/FM radio
  • Brake assist
  • Delay-off headlights
  • Dual front impact airbags
  • Dual front side impact airbags
  • Front anti-roll bar
  • Front reading lights
  • Fully automatic headlights
  • Heated door mirrors
  • Illuminated entry
  • Outside temperature display
  • Overhead airbag
  • Overhead console
  • Panic alarm
  • Passenger cancellable airbag
  • Passenger vanity mirror
  • Power door mirrors
  • Power steering
  • Power windows
  • Rear anti-roll bar
  • Remote keyless entry
  • Security system
  • Speed control
  • Steering wheel mounted audio controls
  • Telescoping steering wheel
  • Tilt steering wheel
  • Traction control
  • Trip computer
  • Turn signal indicator mirrors
  • Variably intermittent wipers
  • Compass
  • Dual rear wheels
  • Front Center Armrest w/Storage
  • Trailer sway control
  • Emergency communication system: SYNCĀ® 4 911 Assist

Vehicle Location

Robins Ford
2060 Harbor Blvd
Costa Mesa, CA 92627

VEHICLE DATA
Certain specifications, prices and equipment data have been provided under license from Chrome Data Solutions (\’Chrome Data\’). Ā© 2025 Chrome Data Solutions, LP. All Rights Reserved. This information is supplied for personal use only and may not be used for any commercial purpose whatsoever without the express written consent of Chrome Data. Chrome Data makes no guarantee or warranty, either expressed or implied, including without limitation any warranty of merchantability or fitness for particular purpose, with respect to the data presented here. All specifications, prices and equipment are subject to change without notice.

ESTIMATE MPG
EPA mileage ratings are supplied by Chrome Data Solutions, LP for comparison purposes only. Your actual mileage will vary, depending on how you drive and maintain your vehicle, driving conditions, battery pack age/condition (hybrid models only) and other factors.

Based on 2019 EPA mileage ratings. Your MPGe/MPG and driving range will vary depending on driving conditions, how you drive and maintain your vehicle, battery-pack age/condition, and other factors.

PRICING
Vehicle pricing is believed to be accurate. Tax, title and registration are not included in prices shown unless otherwise stated. Manufacturer incentives may vary by region and are subject to change. Vehicle information & features are based upon standard equipment and may vary by vehicle. Monthly payments may be higher or lower based upon incentives, qualifying programs, credit qualifications, residency & fees. No claims, or warranties are made to guarantee the accuracy of vehicle pricing, payments or actual equipment. Call to confirm accuracy of any information.

*Number of views in last 30 days

Technical Specifications

  • Vehicle Name: Ford Super Duty F-550 DRW
  • Body Style: SD Regular Cab
  • Body Code: H
  • Drivetrain: Rear Wheel Drive
  • Passenger Capacity: 2, 3
  • Base Curb Weight: 6661, 7369
  • Gross Axle Wt Rating – Front: 4800, 5200, 5200, 5600, 5600, 5600, 6000, 6000, 6000, 6500, 6500, 7000, 7000, 7000, 7000, 7500, 7500, 7500
  • Gross Axle Wt Rating – Rear: 13660, 13900, 14706
  • Curb Weight – Front: 3602
  • Curb Weight – Rear: 3004
  • Gross Vehicle Weight Rating Cap: 17500, 18000, 19000, 19500, 19550
  • Gross Combined Wt Rating: 30000, 34500, 39000, 40000, 43000
  • Dead Weight Hitch – Max Trailer Wt.: 5000
  • Dead Weight Hitch – Max Tongue Wt.: 500
  • Wt Distributing Hitch – Max Trailer Wt.: 18500
  • Wt Distributing Hitch – Max Tongue Wt.: 1850
  • Fifth Wheel Hitch – Max Trailer Wt.: 22000, 25700, 30200, 34200
  • Fifth Wheel Hitch – Max Tongue Wt.: 5500, 6425, 7550, 8550
  • Maximum Trailering Capacity: 18500
  • Engine Order Code: 99T
  • Engine Type: Intercooled Turbo Diesel V-8
  • Displacement: 6.7 L/406
  • Fuel System: Diesel Direct Injection
  • SAE Net Horsepower @ RPM: 330 @ 2200
  • SAE Net Torque @ RPM: 950 @ 1800
  • Trans Order Code: 44G
  • Trans Type: 10
  • Trans Description Cont.: Automatic w/OD
  • Trans Description Cont. Again:
  • First Gear Ratio (:1): 4.62
  • Second Gear Ratio (:1): 2.92
  • Third Gear Ratio (:1): 2.13
  • Fourth Gear Ratio (:1): 1.77
  • Fifth Gear Ratio (:1): 1.52
  • Sixth Gear Ratio (:1): 1.28
  • Reverse Ratio (:1): 4.70
  • Trans Power Take Off: Yes
  • Trans PTO Access: Yes
  • Transfer Case Model: None
  • Transfer Case Power Take Off: Yes
  • Cold Cranking Amps @ 0Ā° F (Primary): 750
  • Cold Cranking Amps @ 0Ā° F (2nd): 750
  • Maximum Alternator Capacity (amps): 190, 190 & 160, 250 & 150, 250 & 160, 250
  • Engine Oil Cooler: None
  • Suspension Type – Front: Other
  • Suspension Type – Rear: Leaf
  • Spring Capacity – Front: 4800, 5200, 5200, 5600, 5600, 5600, 6000, 6000, 6000, 6500, 6500, 7000, 7000, 7000, 7000, 7500, 7500, 7500
  • Spring Capacity – Rear: 13900, 14706, 15000
  • Axle Type – Front: Non-Independent
  • Axle Type – Rear: Rigid Axle
  • Axle Capacity – Front: 7000, 7500
  • Axle Capacity – Rear: 13660, 13900, 14706
  • Axle Ratio (:1) – Front: 4.10, 4.30, 4.88
  • Axle Ratio (:1) – Rear: 4.10, 4.30, 4.88
  • Front Tire Order Code: TGJ, TGM
  • Rear Tire Order Code: TGJ, TGM
  • Spare Tire Order Code: , 512
  • Front Tire Size: LT225/70SR19.5
  • Rear Tire Size: LT225/70SR19.5
  • Spare Tire Size: , Full-Size
  • Front Tire Capacity: 7500
  • Rear Tire Capacity: 15000
  • Revolutions/Mile @ 45 mph – Front: 647
  • Revolutions/Mile @ 45 mph – Rear: 645, 647
  • Front Wheel Size: 19.5 X 6
  • Rear Wheel Size: 19.5 X 6
  • Spare Wheel Size: , Full-Size
  • Front Wheel Material: Steel
  • Rear Wheel Material: Steel
  • Spare Wheel Material: , Steel
  • Steering Type: Re-Circulating Ball
  • Turning Diameter – Curb to Curb: 42.5
  • Brake Type: 4-Wheel Disc
  • Brake ABS System: 4-Wheel
  • Brake ABS System (Second Line): 4-Wheel
  • Disc – Front (Yes or ): Yes
  • Disc – Rear (Yes or ): Yes
  • Front Brake Rotor Diam x Thickness: 15.4
  • Rear Brake Rotor Diam x Thickness: 15.8
  • Drum – Rear (Yes or ):
  • Rear Drum Diam x Width:
  • Fuel Tank Capacity, Approx: 26.5, 40
  • Aux Fuel Tank Capacity, Approx: , 26.5
  • Front Head Room: 40.8
  • Front Leg Room: 43.9
  • Front Shoulder Room: 66.7
  • Front Hip Room: 62.5
  • Wheelbase: 145
  • Length, Overall: 230.7, 272.9
  • Width, Max w/o mirrors: 80
  • Height, Overall: 82.6
  • Overhang, Front: 38.3
  • Overhang, Rear w/o bumper: 47.2, 89.4
  • Cab to Axle: 60
  • Cab to End of Frame: 107.2, 149.4
  • Frame Width, Rear: 34.2
  • Ground Clearance, Front: 8.5
  • Ground Clearance, Rear: 8.5
  • Seventh Gear Ratio (:1): 1.00
  • Eighth Gear Ratio (:1): 0.85
  • Country of Origin: United States Ford Incomplete Vehicle
  • Model Group: F-Series Chassis
  • Vehicle Segment: Chassis
  • Vehicle Type: Standard Cab
  • Body Cab Style: Standard Cab
  • Engine Displacement Units: 6.7, 7.3, 7.3
  • Engine Camshaft: OHV, OHV, OHV
  • Engine Block Type: iron, iron, iron
  • Engine Cylinder Count: 8, 8, 8
  • Engine Valve Count: 2, 2, 4
